ELEVN CTRL AL FORKS
Fork Weight Limit & Structural Integrity Policy
The structural weight capacity of this bicycle fork is rated for a maximum rider and gear weight of 240 lbs (108 kg) under standard, intended operating racing conditions. However, a weight limit is not an absolute shield against failure. A bicycle fork is a critical component that can experience sudden, catastrophic breakage regardless of rider weight if subjected to abuse, crashes, severe impacts, or structural misuse. Bends or failure due to crashes are not covered under any warranty, no matter how short the usage of the product is.

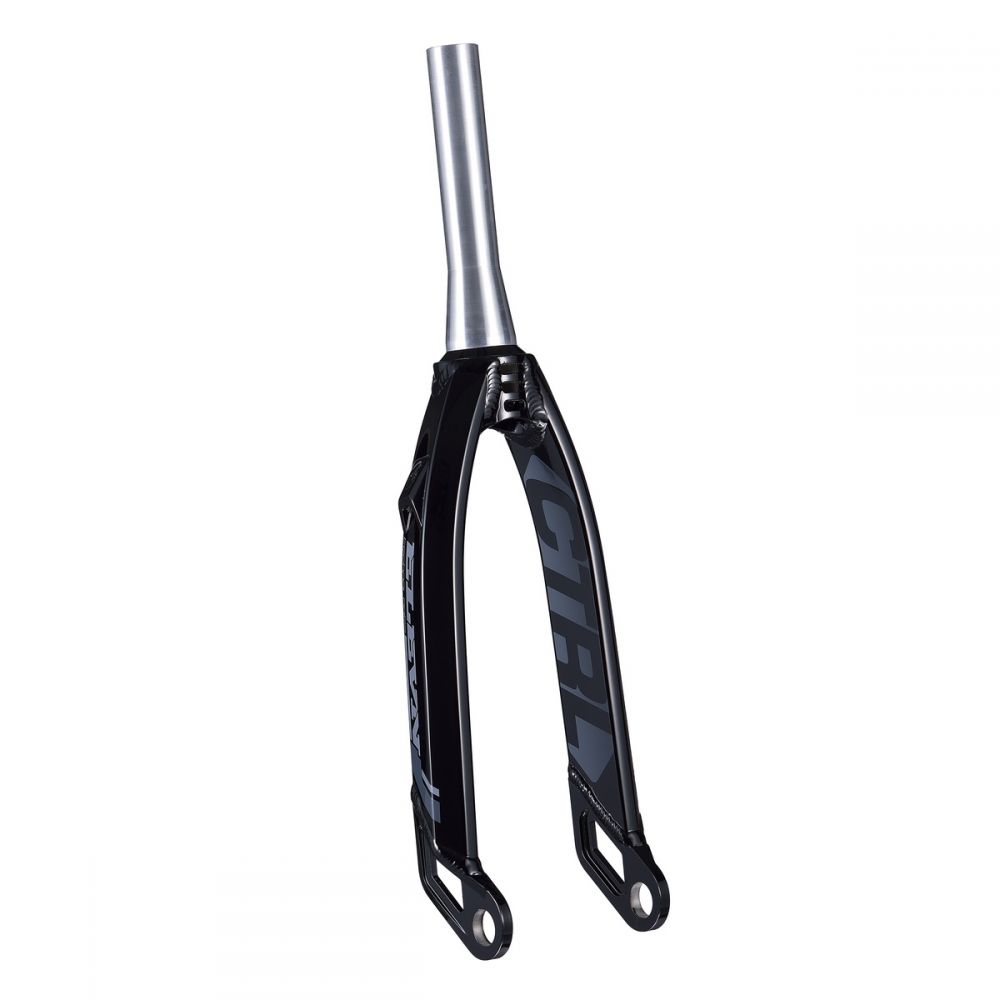

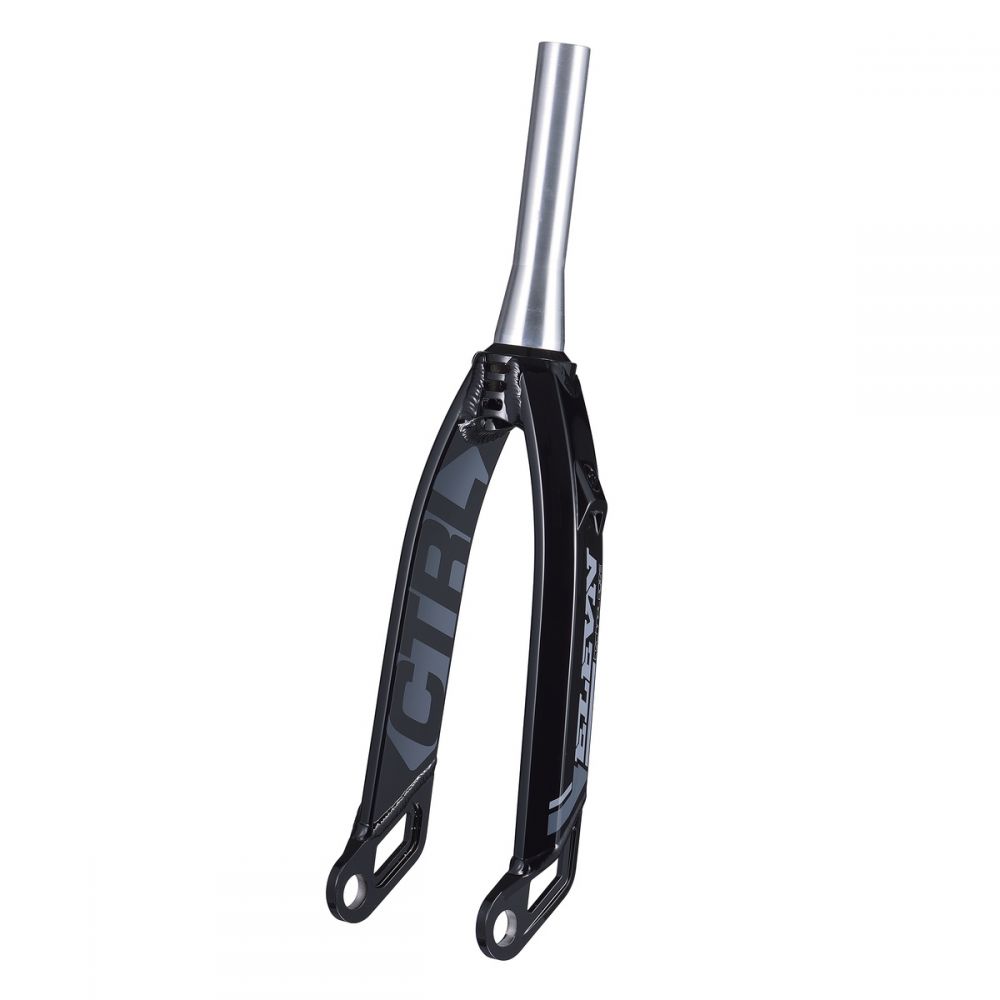

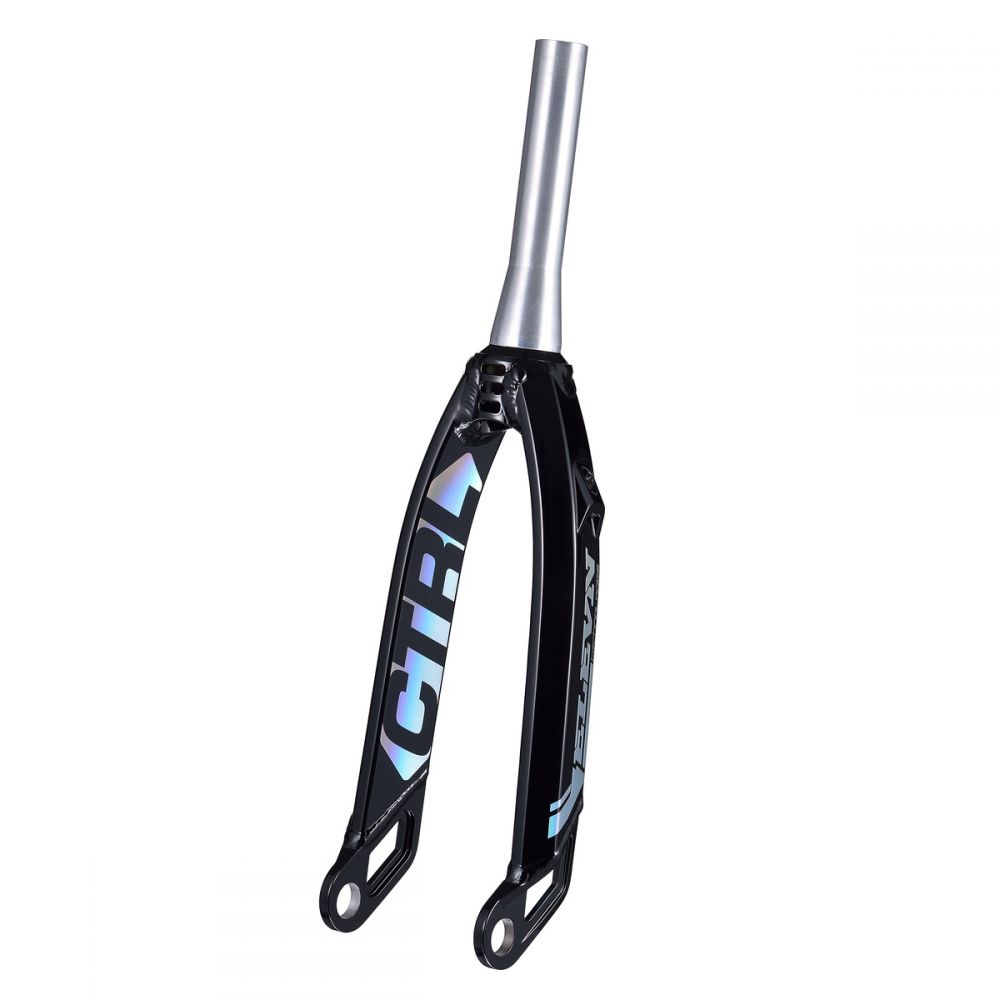

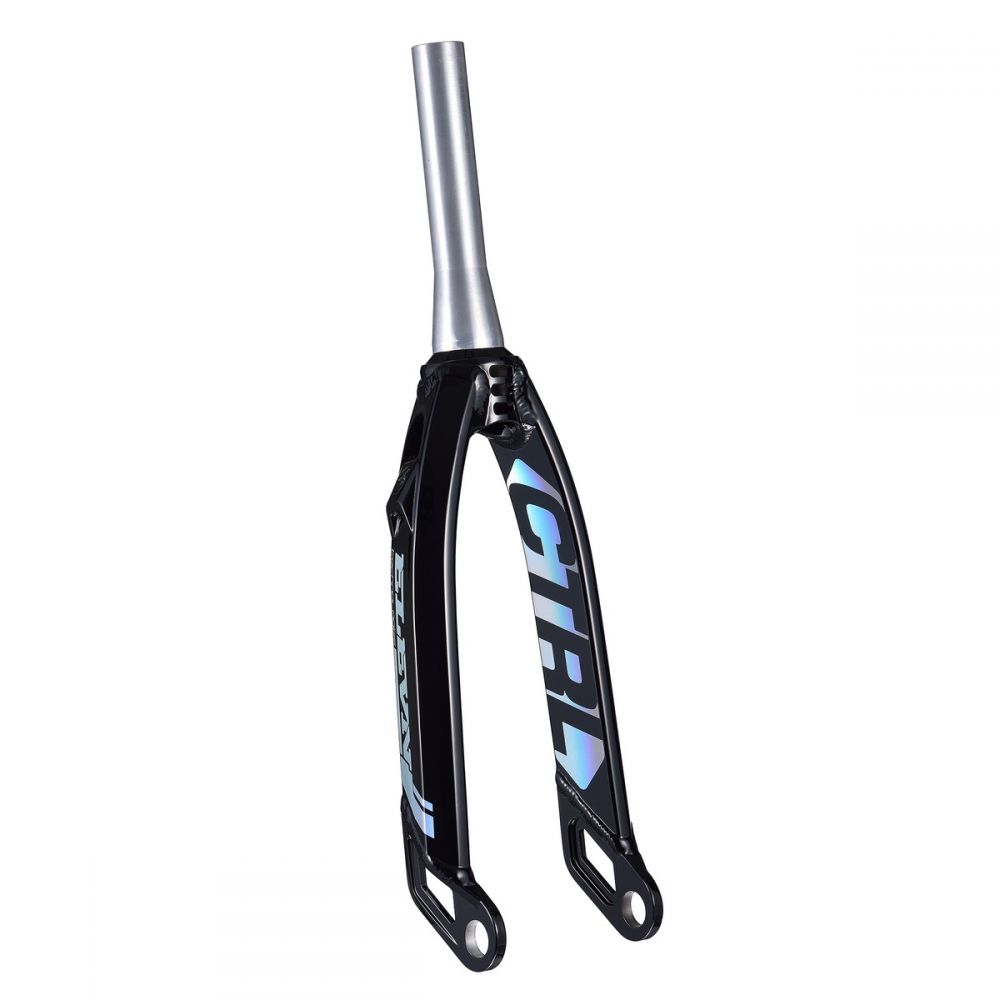

Introducing the first full-aluminum fork in the Elevn lineup — engineered to deliver carbon-like lightness while keeping the flex and durability that only aluminum can offer. It's a rare balance built for riders who want a fork that's reliable, responsive, and built to race.

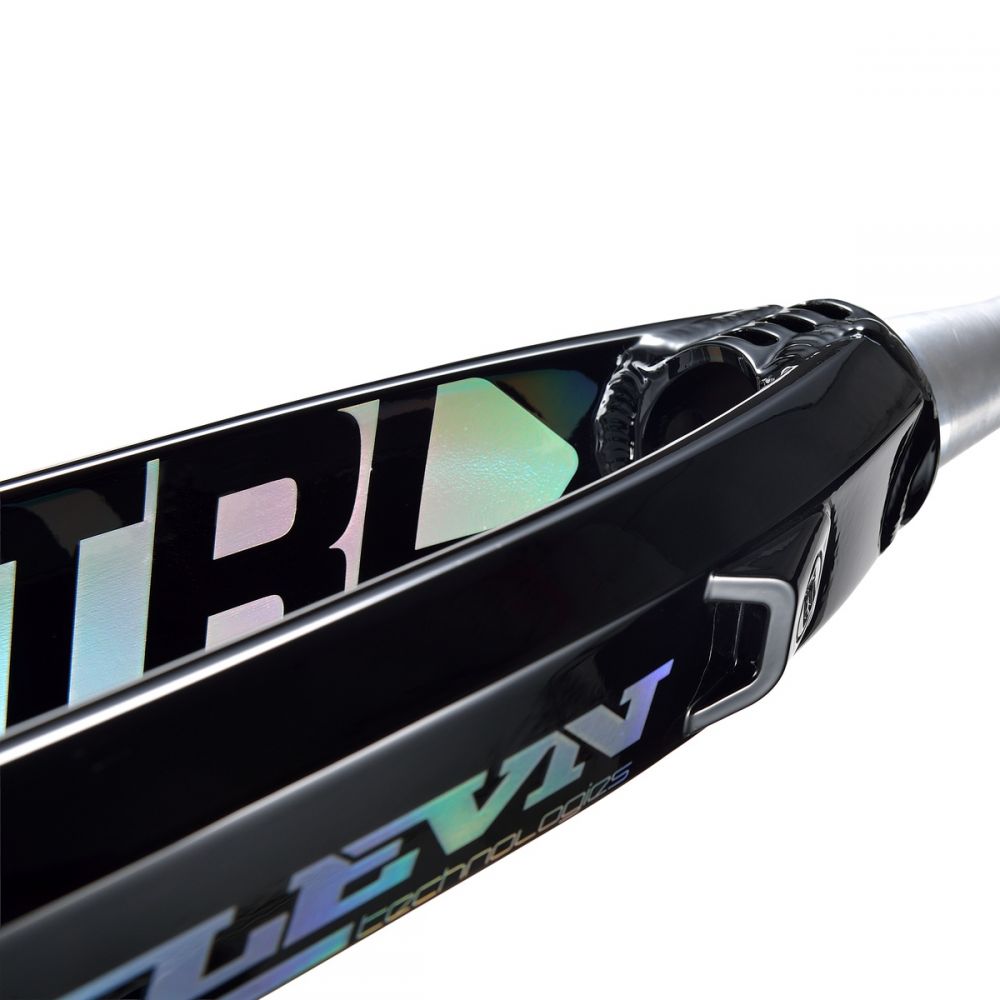

Crafted from 6061-T6 aluminum, this fork features streamlined profile legs with raised inserts showcasing an embossed Elevn logo, giving it a bold look. The 1-1/8" -1.5” tapered aluminum steer tube ensures maximum front-end stiffness for precise steering.
At just 755g (including top cap), this fork sets a new benchmark in its class — without compromising the strength needed for hard, everyday racing.
- Material: 6061-T6 Aluminum, full alloy construction
- Size : 20" & 24"
- Steerer: 1-1/8" -1.5” Tapered Aluminum

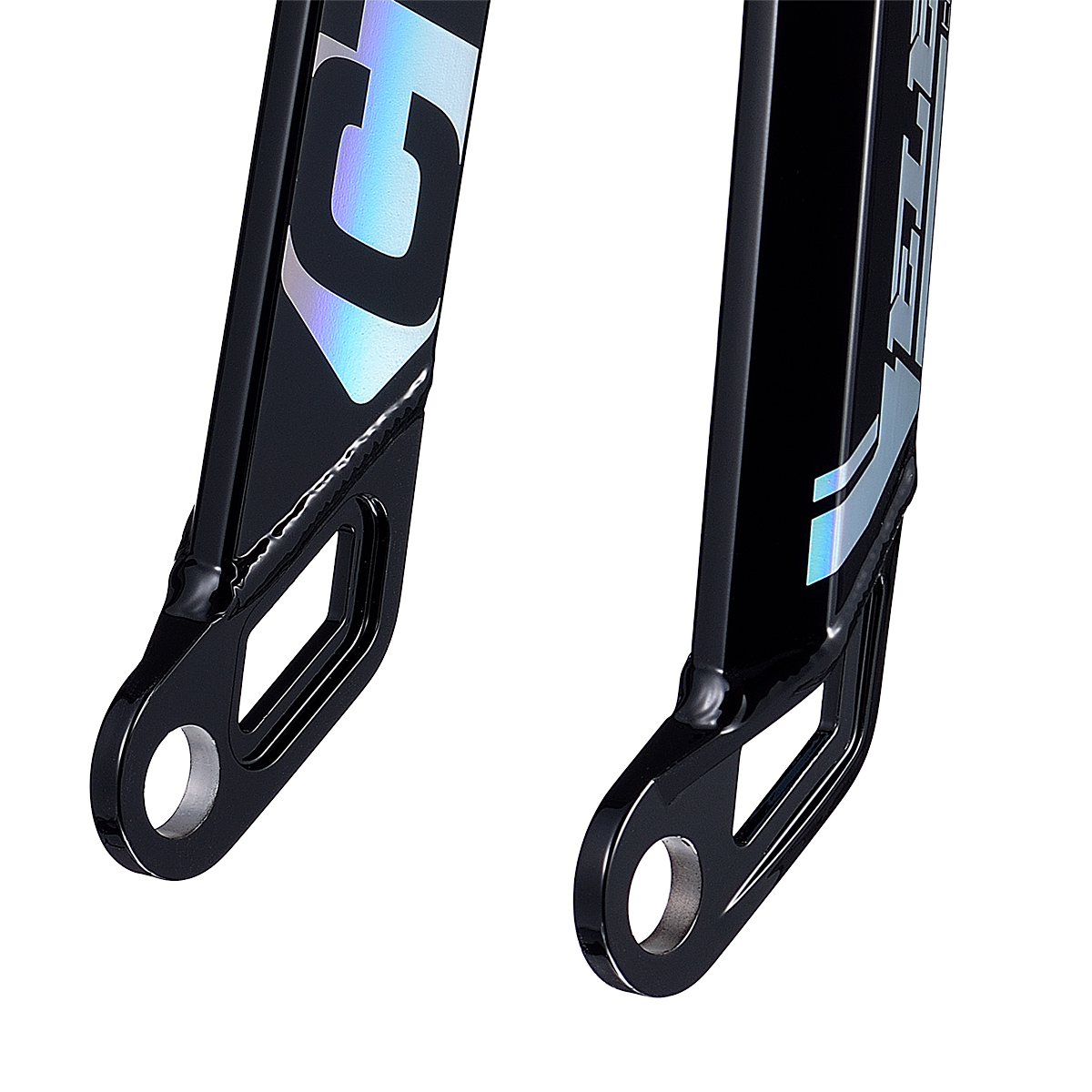

- Dropout: 20mm
- Axle to crown: 20": 305mm ; 24": 353.5mm
- Weight: 20": 755g (with top cap) ; 24": 798g (with top cap)
- Embossed Elevn logo inserts
- Exceptional weight-to-stiffness ratio
- 31mm Drop out offset.

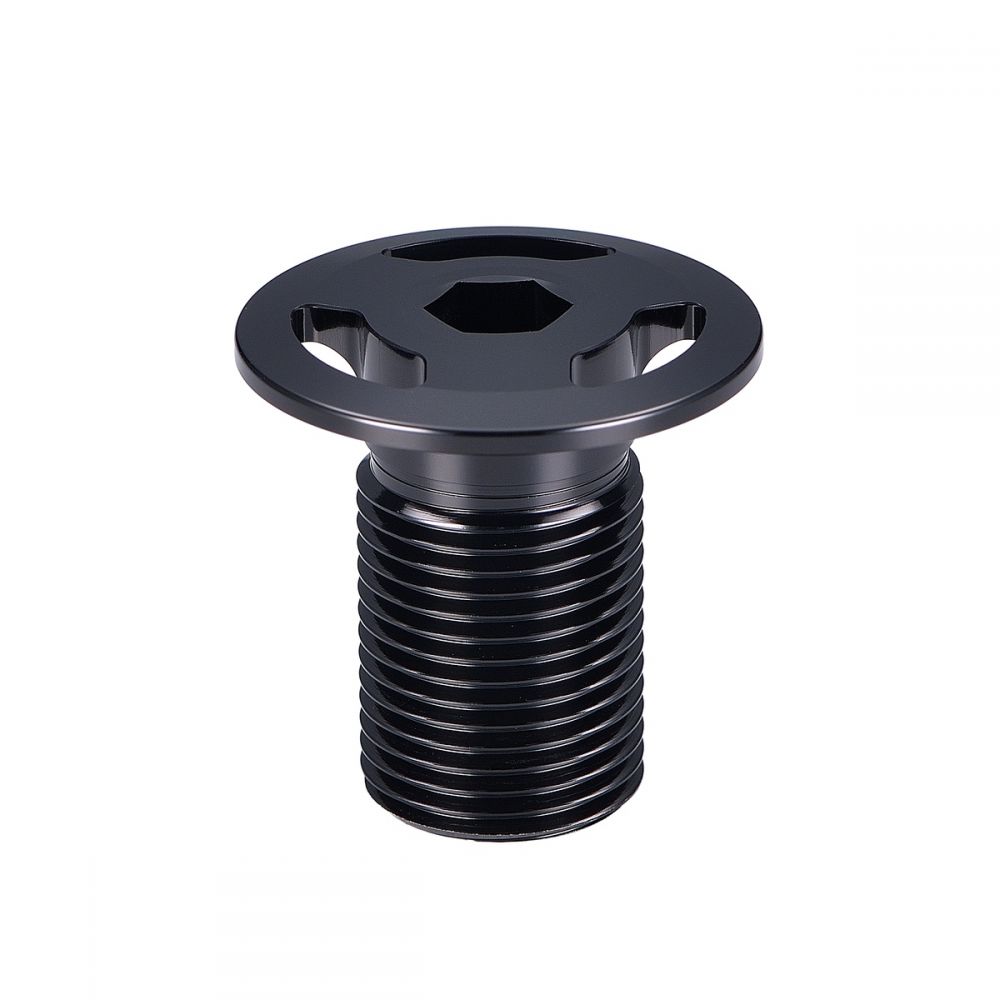

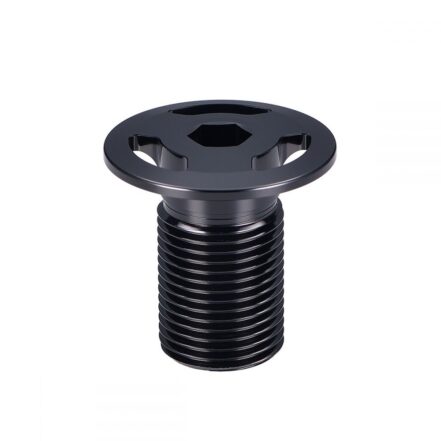

ELEVN Alloy Top Cap included
(Top cap weight: 16 g / 0.56 oz)
Color Options
